Flawless Solar Monitoring - Without a Single Wire
When wired infrastructure failed and conventional wireless hit walls, dyulabs delivered 100% reliable monitoring across 13 buildings.
500 kW
Solar Portfolio | 13 Sites | 23 Inverters | IIT Gandhinagar, Gujarat
500 kW
Total Installed Capacity
13 Sites
Solar Buildings Monitored
23 Inverters
Inverters Monitored 24/7
5 Min
Live Data Refresh Rate
PROJECT SITE OVERVIEW
Real campus locations at IIT Gandhinagar, Gujarat, India

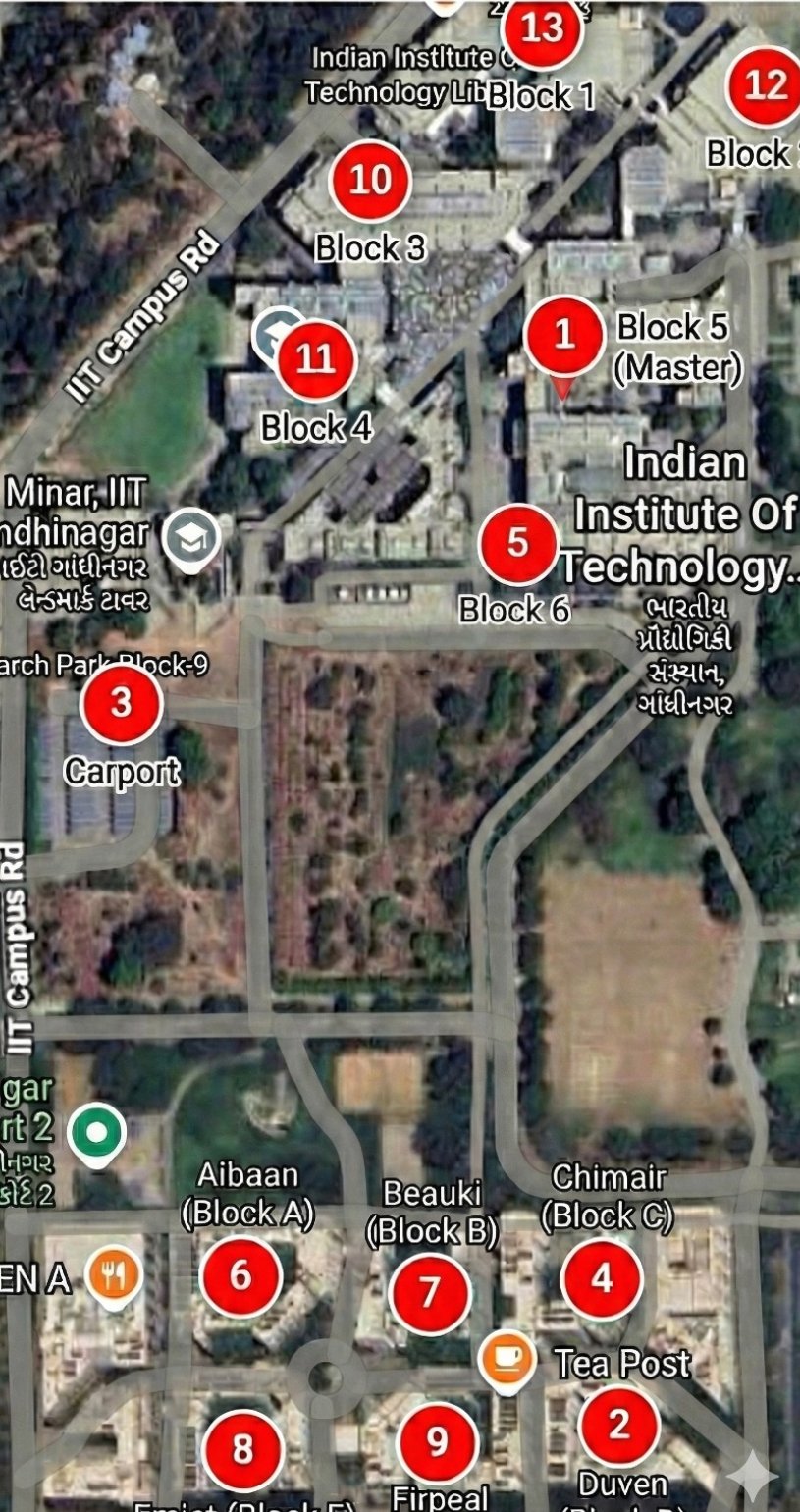

Device installation map — all 13 RMS units plotted across buildings

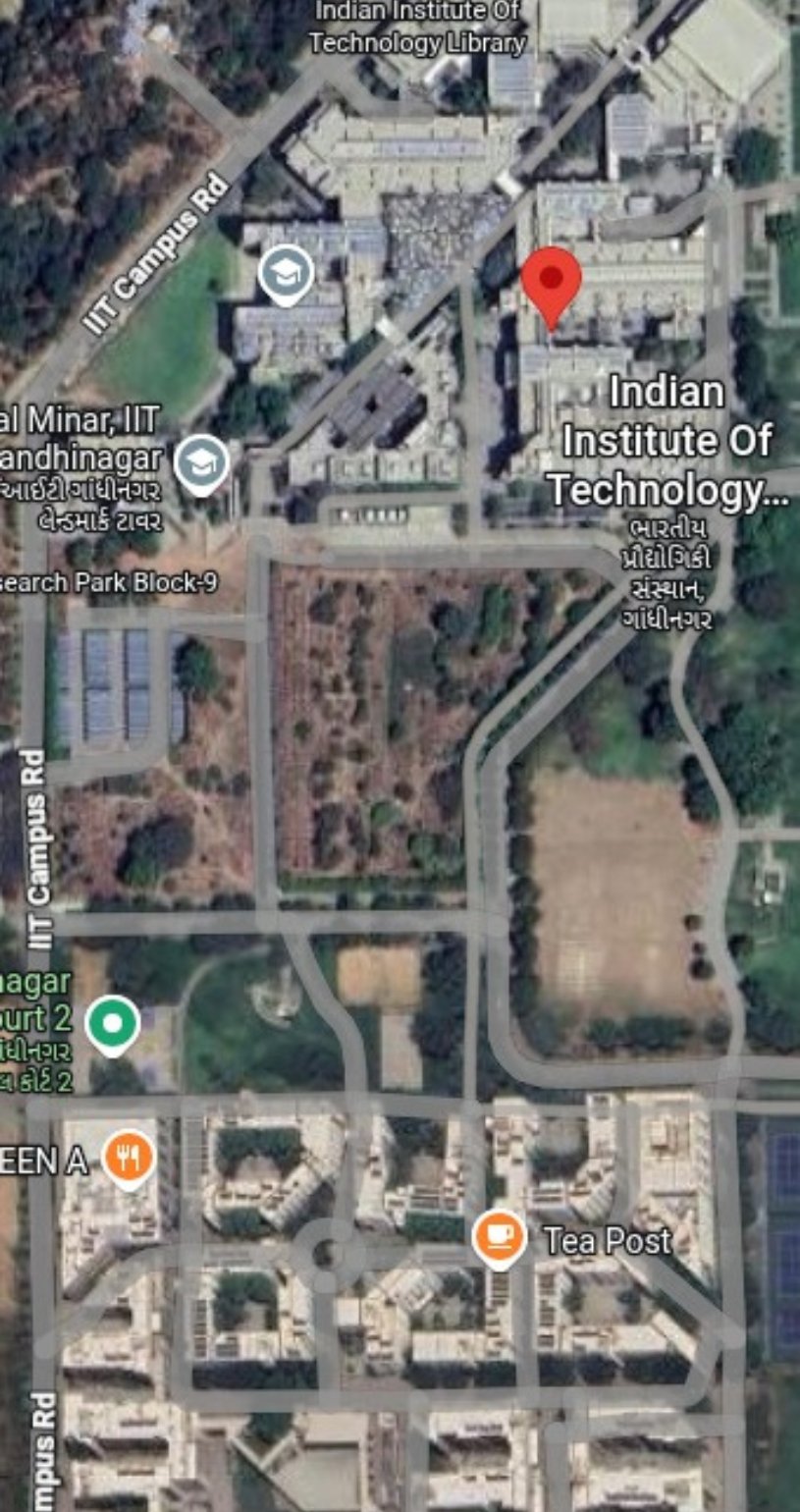

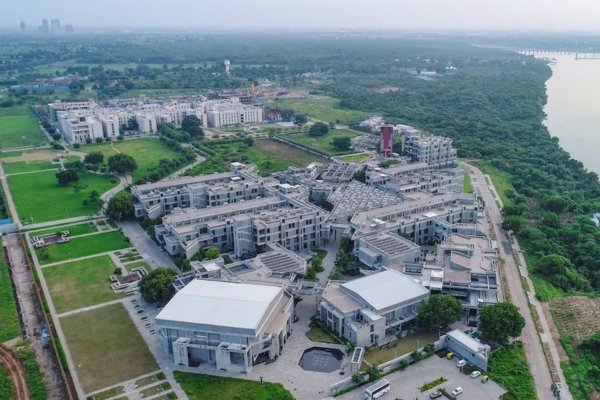

Campus overview — IIT Gandhinagar campus, Gujarat
THE CHALLENGE
- 13 separate solar sites across ~500 m campus radius, each isolated with zero shared monitoring infrastructure.
- Critical were inverters embedded deep inside buildings — completely blocking line-of-sight for any standard wireless or wired solution.
- 0 centralized platform for real-time generation tracking, performance monitoring, or fault detection across all 13 sites.
- Wired infrastructure already installed — yet consistently produced incorrect, incomplete data. Operator trust was eroded entirely.
Our Solution
Four pillars that made the impossible possible
RMS at Every Site
A dyulabs RMS device deployed at each of the 13 solar sites — fully independent, no shared bottlenecks, no single points of failure.

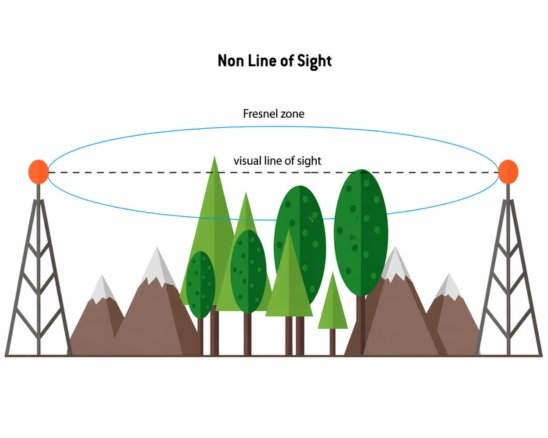

No Line-of-Sight
Communicates through walls, ceilings and floors — reaching inverters inside buildings where all previous wired and wireless solutions had failed.
Secure Network
All data flows through dyulabs' proprietary hardened communication layer — zero packet loss across the full 500 m campus radius.
Unified Dashboard
Complete real-time visibility across all 23 inverters and 500 kW — updated every 5 minutes without interruption or data gaps.
LIVE MONITORING — IN ACTION
Real screenshots from the dyulabs platform deployed at IIT Gandhinagar

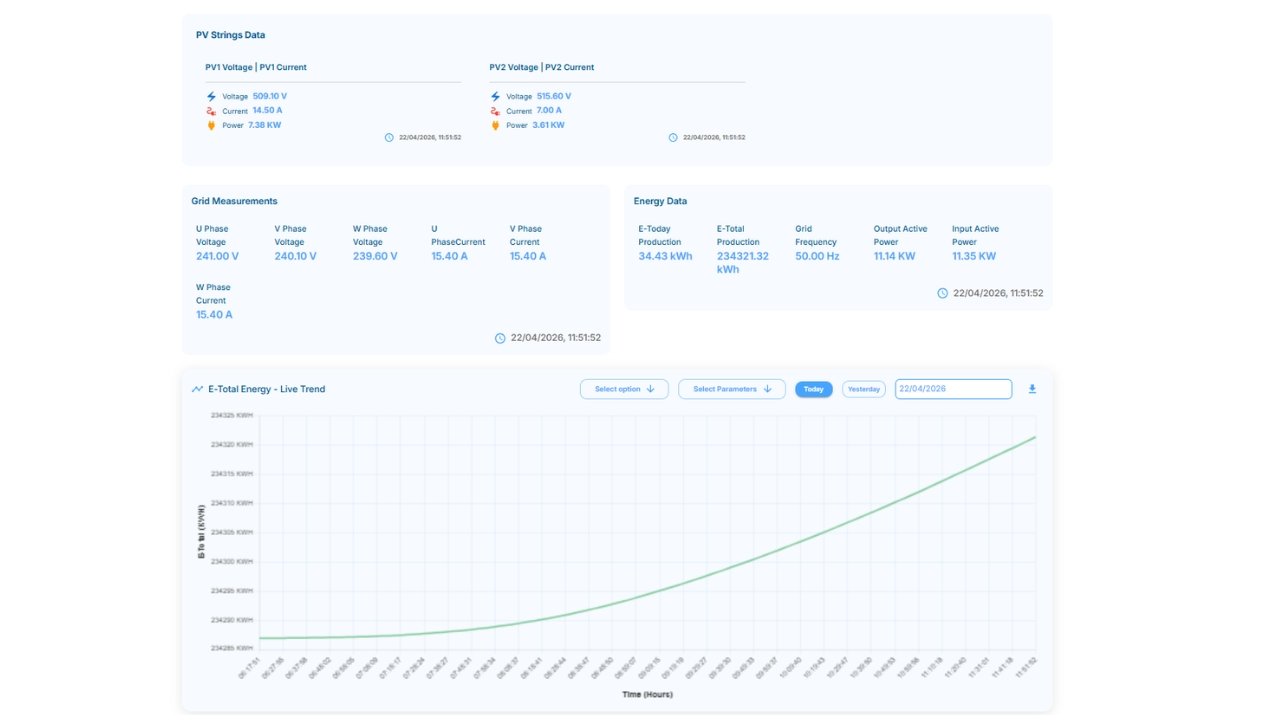

Dyulabs Dashboard — Block 6 Inverter · PV string data, grid measurements, energy stats and live current trend

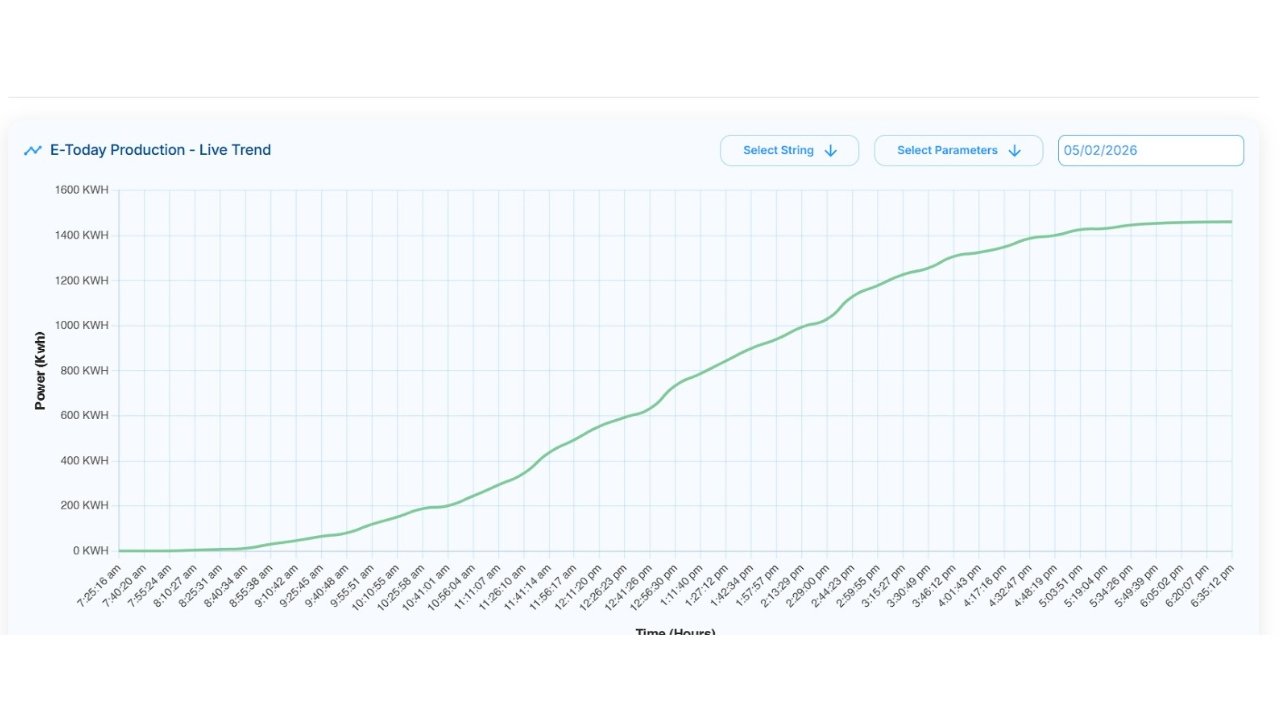

E-Today Production Live Trend (05/02/2026) · ~1,450 kWh cumulative daily output captured in real-time
MEASURED OUTCOMES
0%
Data Packet Drop Rate
13/13
Sites Live & Reporting
~1,450
KWh Captured / Day
5 min
Refresh Cycle
DEPLOYMENT TIMELINE
- This deployment at IIT Gandhinagar is a defining example of where purpose-built IoT monitoring outperforms everything else. When wired solutions couldn't deliver accurate data and line-of-sight wireless hit physical walls — literally — dyulabs' approach ensured every kilowatt of generation was captured, every 5 minutes, without compromise.
